10x Genomics Visium

visium13d6da52f

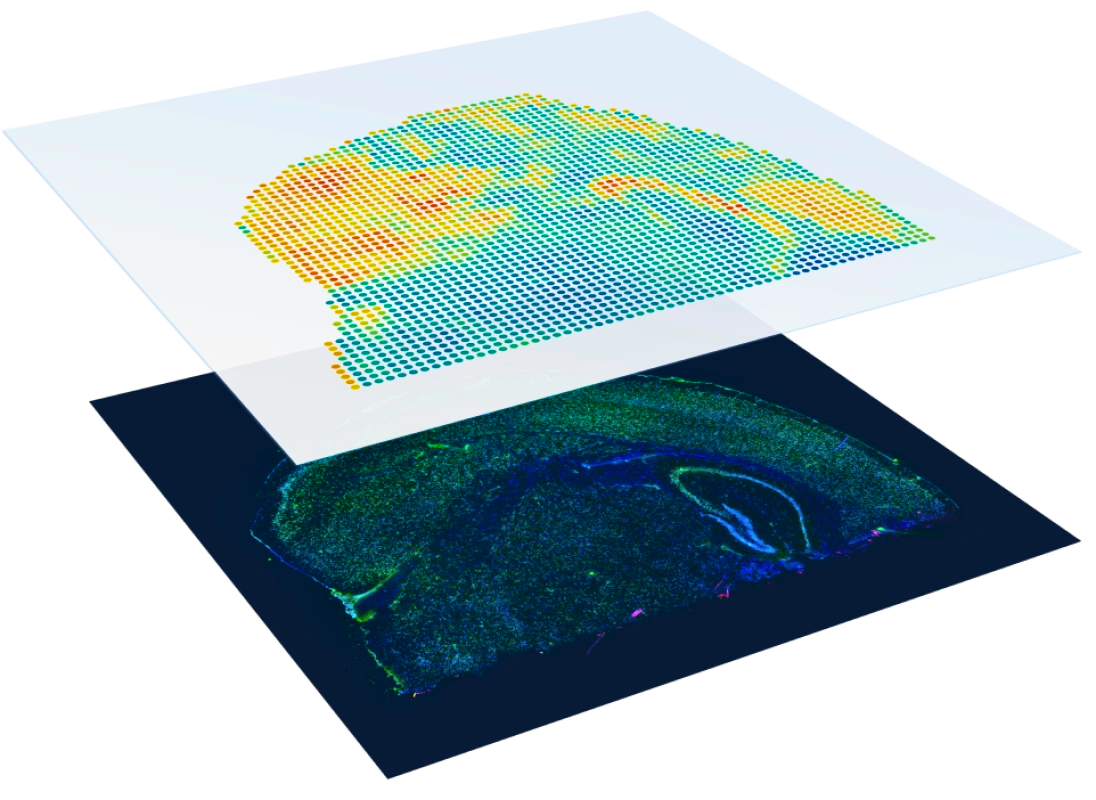

The 10x Genomics Visium enables hybridization capture of tissue RNA on slides at up to single cell resolution. Visium generates whole transcriptome libraries which are overlapped with high resolution H&E images at a 1-10 cell resolution depending on tissue type.

  • Compatible with fresh frozen and FFPE tissue.
  • Combine whole transcriptome spatial analysis with immunofluorescence protein detection.
  • Allows for addition of extra probes for specific applications.

For more information about the assay: https://www.10xgenomics.com/platforms/visium

The STU offers all versions of the Visium Assay currently supported by 10x Genomics:

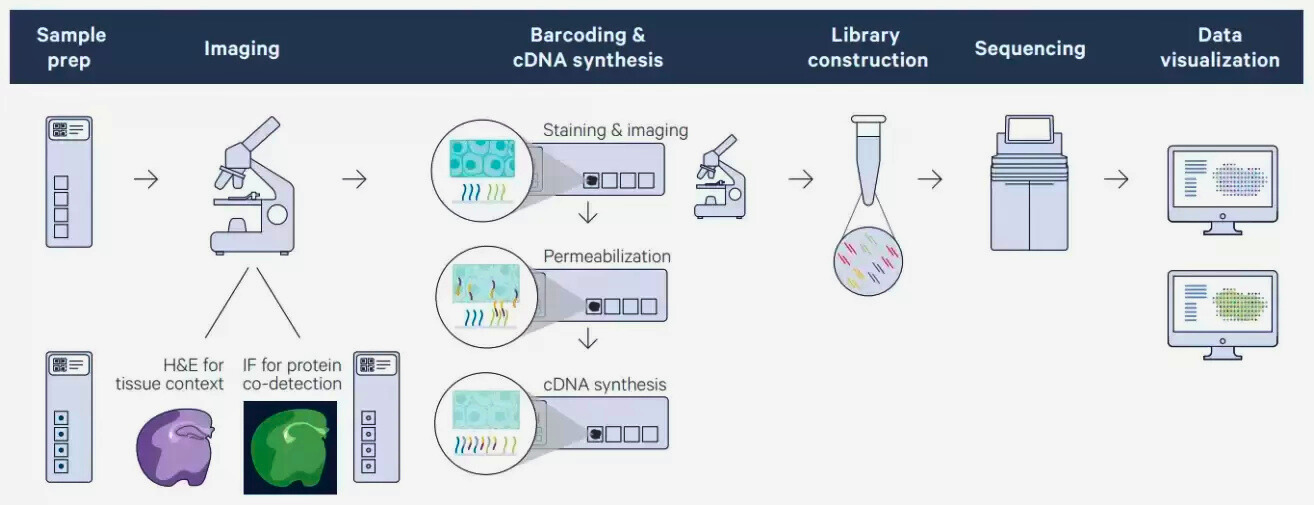

10xvisium_howitworks_caedf308

  • Fresh Frozen only.
  • Species non-specific – unbiased polyA tail capture.
  • Slides have either two or four capture areas of 6.5X6.5mm each.
  • Samples must be mounted directly onto Visium slide.
  • 55-micron barcoded spots

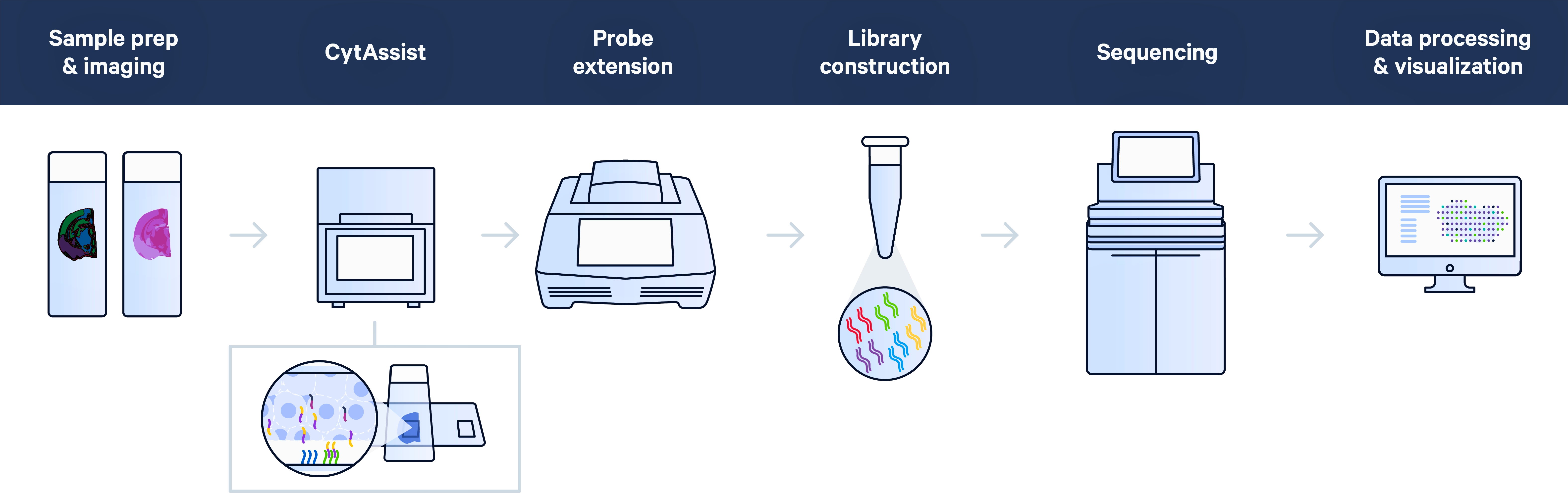

cytassist_workflow_44bcd558

  • The starting sample is mounted in a standard pathology slide.
  • Slides have two capture areas of either 6.5X6.5mm or 11X11mm each.
  • Compatible with Fresh Frozen and FFPE tissue.
  • Compatible with human and mouse tissue only.
  • 55-micron barcoded spots.

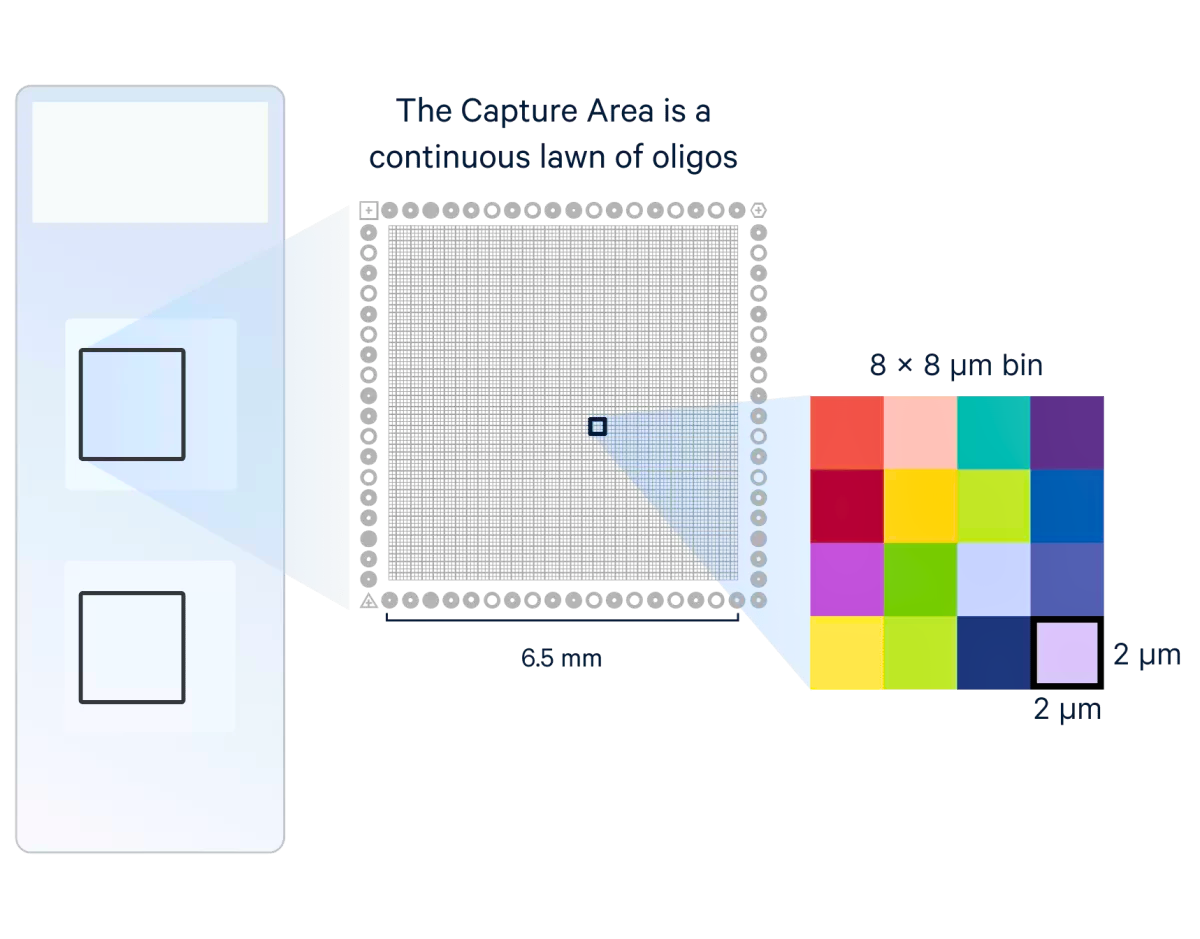

visium_hd_capture_area_f0d6b1a2

  • 2-micron barcoded spots – single cell resolution.
  • CytAssist Enabeled.
  • Slides have two capture areas of 6.5X6.5mm each.
